Anodized Galvanized Stainless Steel PV Racking System Customized Size

Min Bestellmenge : 1000 Watt/Watt Preis : US $0.05-0.18 / Watts
Verpackung Informationen : Kasten 1.Carton, hölzerne Palette, Gurtbündelverpackung und andere Arten Paket die Produktsicherheit Lieferzeit : innerhalb Arbeit 15-25 Tage nach Empfangsablagerung
Zahlungsbedingungen : L/C, D/A, D/P, T/T, Western Union, MoneyGram Versorgungsmaterial-Fähigkeit : 100000 Watt / Watt pro Woche
Herkunftsort: CHINA Markenname: TIANFON
Zertifizierung: SGS,ISO 9001,ISO 14001,OHSAS 18001 Modellnummer: Sonnenkollektor-Grundmontage-Systeme

Detailinformationen

NAME: Flache Sonnenkollektor-Schienenplatten-allgemeinhinausrüstung Größe: Besonders angefertigt
Anwendbarer Standort: öffnen Sie Boden/Dach Anwendbares Modul: gestaltet oder frameless
Schneelast: Bis zu 30psf (1.4KN/m2) Windlast: Hohes to130mph (60m/s)
Markieren:

SGS Stainless Steel PV Racking System

,

Galvanized Stainless Steel PV Racking System

,

Solar Cell Panel Mounting Brackets

Produkt-Beschreibung



Professional Stainless Steel PV Racking System Customized Solar Cell Panel Mounting Brackets



The ground mounting system is suitable for both small and large-scale solar plants .with a flexible connection, it can be installed on the concrete base, or the earth ground, even the slope can also be workable.


It is a universal adjustable angle column mounting system. The patented track has good component compatibility and convenient to install, which saves installation time and costs for users, Strict quality control ensures the performance and life of the product. And the system is compatible with most photovoltaic brackets on the market.


We are committed to maintaining a friendly and long-term relationship with our customers. And we always provide our products with excellent service, excellent quality and best prices.



Brief Information:



Model Number: Solar Ground Mounts
Capacity: Strong
Span: As required
Install Angle: 0-60 degree
Ground Clearance: ≥0.15m
Max Building Height: 20m
Technique: Hot Rolled
Base: Static pressure tube pile
Structural materials: Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
Design: OEM/ ODM



Parameter:


 Application  Mountain, Plain, Highland, Desert
 Module Orientation  Portrait or landscape
 Treatment  Anodized, Galvanized
 Structural materials  Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel
 Install Angle  0-60 degree
 Ground Clearance  ≥0.15m
 Wind load  130mph(60m/s)
 Snow Load  30psf(1.4kN/m2)
 Applicable Module  Framed, frameless
 Color  Natural or Customized
 Snow load  1.4kn/square meter
 OEM mounting parts  Accepted
 Remark  Bracket technical data should be changed if module spec changed


Features:



​► Suited for both framed and unframed PV modules.


► Applicable to flat concrete roof and a large array PV system in open terrain


► 0-45 degree variable inclination angle, fixed


► Set on both ground screw foundation and concrete foundation.


► Configuration for both portrait and landscape.


► All products are made by experienced skilled staffs to operate quality. With strictly full inspected and controlled by Qc department.



Advantages:



► Professional customized design
The product is designed by experienced designers, with stable structure and mature technology, which can reduce installation difficulty in most cases.



►Easy to Install
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.



►Adaptation to various complicated terrains
The systems can be mounted and used in desert, glass lands, gobi, ceramic, macadam, shallow sea beach(less than 5m), and other geological environments, the install quality doesn't affect by groundwater.



►Flexibility and Adjustable

Smart design reduce the difficulty of the installation on the most condition.



► Safety
The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.



Project Case:

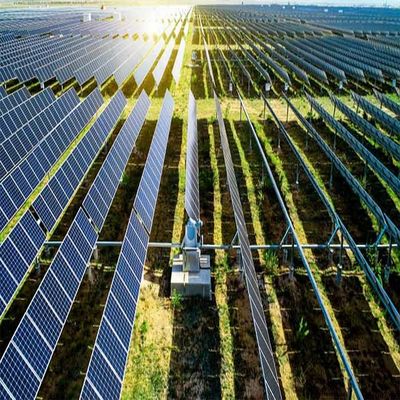

Anodized Galvanized Stainless Steel PV Racking System Customized Size 0

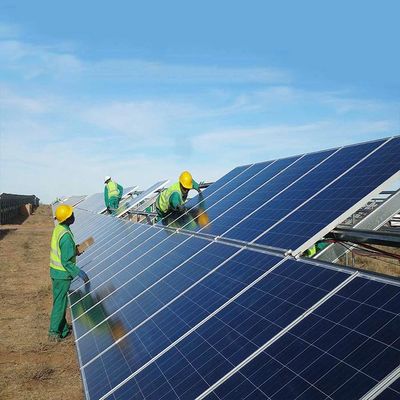

Anodized Galvanized Stainless Steel PV Racking System Customized Size 1



Solar Power Generation Project 81.24MW Located in Pakistan
Real projects that we provided for our customers



Packaging and delivery:

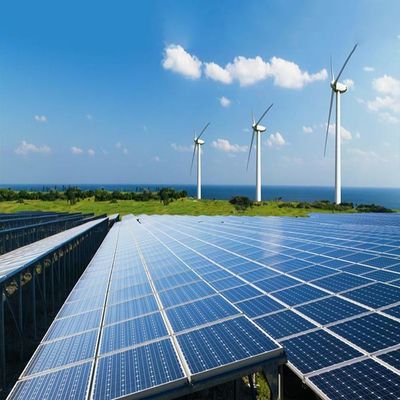

Anodized Galvanized Stainless Steel PV Racking System Customized Size 2



► Port: Tianjin, Shanghai, Qingdao

► Package: strong and long distance transportation package

► Payment Terms: L/C,D/A,D/P,T/T



Our Certificates:



Anodized Galvanized Stainless Steel PV Racking System Customized Size 3

Anodized Galvanized Stainless Steel PV Racking System Customized Size 4
